Access Box
Designed for safe, simple, and efficient access control setup

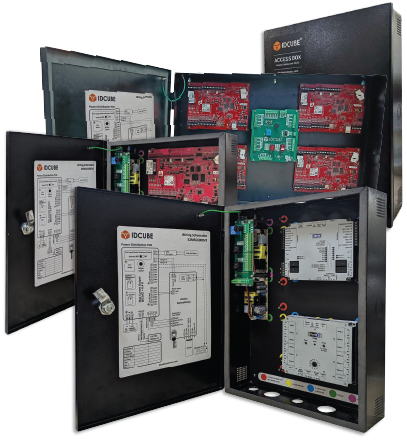

IDCUBE’s innovative Access Box series is engineered for effortless installation of Mercury and Aero Access Control boards. With advanced smart features, a sleek and compact design, and compliance with stringent global safety standards, it delivers unmatched reliability and simplicity for critical industrial and commercial facilities.
Designed
for Trust
Benefits
Versatility
The one-of-a-kind enclosures can support up to four boards (eight doors) of Mercury, Aero, and Vertx, and even eight boards of certain Mercury models without requiring additional peripherals.
Fire alarm integration
The enclosure integrates with a fire alarm system in fail-safe scenarios, cutting off door power during fire events to comply with emergency regulations and eliminating the need for access control controllers to perform this critical function.
Lift-off hinge
The enclosure door can be easily removed for installation and cabling, making implementation and maintenance easier.
Color-coded standoffs
The enclosure comes equipped with color-coded standoffs that make it easy to mount different boards. This simplifies the process of installation.
Compact dimensions
It is one of the most compact enclosures for typical two-doors, four-doors or eight doors access control scenarios, easily fitting into smaller spaces.
Battery charger with UPS function
The built-in battery charger with UPS function can charge up to four 12V-7Ah batteries, ensuring facility security during power outages.
Universal AC input/Full range
The power circuitry is designed to be compatible with all AC mains voltage levels, making installation worry-free.
100% full load burn-in test
The power circuitry has undergone a full-load burn-in test for endurance and stability, ensuring high reliability.
Indicator LEDs
The enclosure's power distribution board includes various LEDs that indicate the current status visually.
Power/Battery switches
The power distribution board in the enclosure includes switches for both AC mains and battery power cut-off, making maintenance operations easier.
Additional coolant fan compatibility
The enclosure supports the installation of up to four 40mm x 40mm coolant fans for reliable operation in high temperatures.
Universal knockouts
The enclosure includes multiple knockouts to support 3/4" and 1" set screw connectors for conduit integration.
Locking system and tamper switch
The enclosure is secured with a universal key lock and a tamper switch to prevent unwanted access to the access control boards.
Protections
The power circuitry is highly durable and dependable, offering protection against accidental short circuits, overload, and overvoltage.
Battery safety
The battery charger ensures battery safetywith protection against low charge and reversed polarity.
Download
Datasheet
Access Box v3.1
