Compact and powerful long-range RFID reader

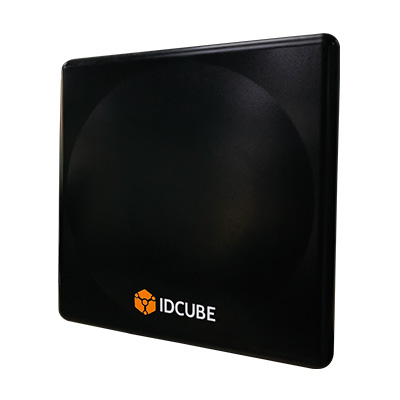

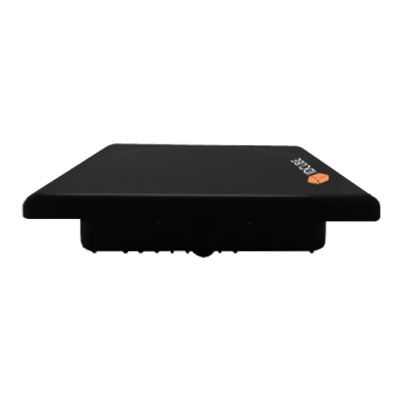

IDLR12 – Your solution for effortless vehicle access management

The IDLR12 is the industry’s most compact yet powerful UHF long-range RFID reader. Its advanced multi-tag inventory algorithm allows for fast identification of vehicles with a reading range of up to 12 meters. Whether you require access management for toll plazas or corporate parking lots, the IDLR12 offers efficient and dependable performance that you can rely on.

Benefits

Compact design

It is durable and compact and fits easily into narrow lanes and rampways while maintaining an aesthetically pleasing appearance.

All-in-one

The reader is equipped with a 9dBi circular polarized antenna with an indicator LED to read a vehicle tag in any orientation for assured reading performance.

Powerful read engine

Enhanced reading algorithm and powerful electronics enable a fast read speed of 100 tags per second, ensuring reliable performance even on moving vehicles.

Extended Range

Vehicles can now be detected and authenticated from up to 12 meters, allowing them to pass through a barrier without stopping.

Versatile Communication

The reader seamlessly integrates with the Access Control System and other devices through various communication ports such as Wiegand, TCP/IP, RS232, and RS485.

Specialized Credentials

The UHF reader is compatible with IDCUBE's ASSA series of long-range credentials, ensuring simplified vehicle onboarding and reliable and secure access.

Adaptable Applications

Ideal for parking lots at multi-tenanted business parks, residential complexes, and corporate houses; vehicle access control and tracking at large industrial complexes, seaports, and airports.

Specifications

HID® Aero® X1100 HID® Aero® X100 HID® Aero® X300 HID® Aero® X200
Description Intelligent Controller — Up to 4 Readers, 7 Inputs, 4 Outputs Input monitor interface module — supports up to 4 readers, 7 inputs, 4 outputs Output control interface module — controlling up to twelve general-purpose outputs Input monitor interface module — monitoring up to sixteen general-purpose inputs
Inputs 615 (using X200 or V200 IO modules) 7 supervised/unsupervised on-board, standard EOL: 1k/1kΩ 1%, 1/4 watt 7 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt 5 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt 19 supervised/unsupervised, standard EOL: 1k/1kΩ 1%, 1/4 watt
Output 388 (using X300 or V300 IO modules) 4 Relays, Form-C with dry contacts 4 Relays, Form-C with dry contacts 12 Relays, Form-C with dry contacts, non-latching 2 Relays, Form-C with dry contacts, non-latching
Relay Contact Rating 5A/3A (NO/NC) @ 30 Vdc resistive 2 A @ 30 Vdc resistive 2 A @ 30 Vdc resistive 2 A @ 30 Vdc resistive
Input Voltage 12 to 24 Vdc +/- 10% 12 to 24 Vdc +/- 10% 12 to 24 Vdc +/- 10% 12 to 24 Vdc +/- 10%
Maximum Input Current 1.9 A (550mA excluding readers and USB) 1.9 A (550mA excluding readers and USB) 500 mA 300 mA
Operating Temperature 32 to 158 F (0 to 70 C) 32 to 158 F (0 to 70 C) 32 to 158 F (0 to 70 C) 32 to 158 F (0 to 70 C)
Dimension 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm) 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm) 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm) 6.46" x 5.51" x 1.02" (164 mm x 140 mm x 26 mm)
Access Point Control Up to 2 access points with on-board IO 64 (using X100 or V100 IO modules) Up to 2 access points with on-board IO
Reader Support Up to 4 (OSDP multi-drop) or 2 (Wiegand) with on-board IO 64 (OSDP or Wiegand, regardless of IO module configuration) Up to 4 (OSDP multi-drop) or 2 (Wiegand) with on-board IO
Access Levels 32 per credential (per reader schedule)
Credential Capacity 250000
Number of IO Module Buses 2 (each dedicated to either Aero or VertX IO modules)
Ethernet Communication 10BaseT/100Base-TX
