AXS+ smart

Access Control Reader

The most versatile smart card, QR & mobile credential Access Control Reader for smart spaces

IDCUBE AXS+ Access Control Reader is the industry’s most versatile and secure solution for future-ready facilities. Supporting smart cards, PINs, BLE, NFC mobile wallet credentials (Apple, Google, Samsung), and static & dynamic QR codes, AXS+ delivers true multi-credential capability. With sleek yet rugged design, and Mullion or Gang box mounting options, it ensures seamless installation across workplaces. Integration with PACS controllers via Wiegand and OSDP/OSDP-SC guarantees secure communication. Ideal for corporate offices, coworking spaces, residential complexes, healthcare, and educational campuses, AXS+ redefines access control readers with universal compatibility, advanced security, and digital transformation readiness.

Aesthetic, sleek, and convenient

Transform your spaces with AXS+, an innovative reader by IDCUBE, enhancing operational
efficiency and security

Available in different models

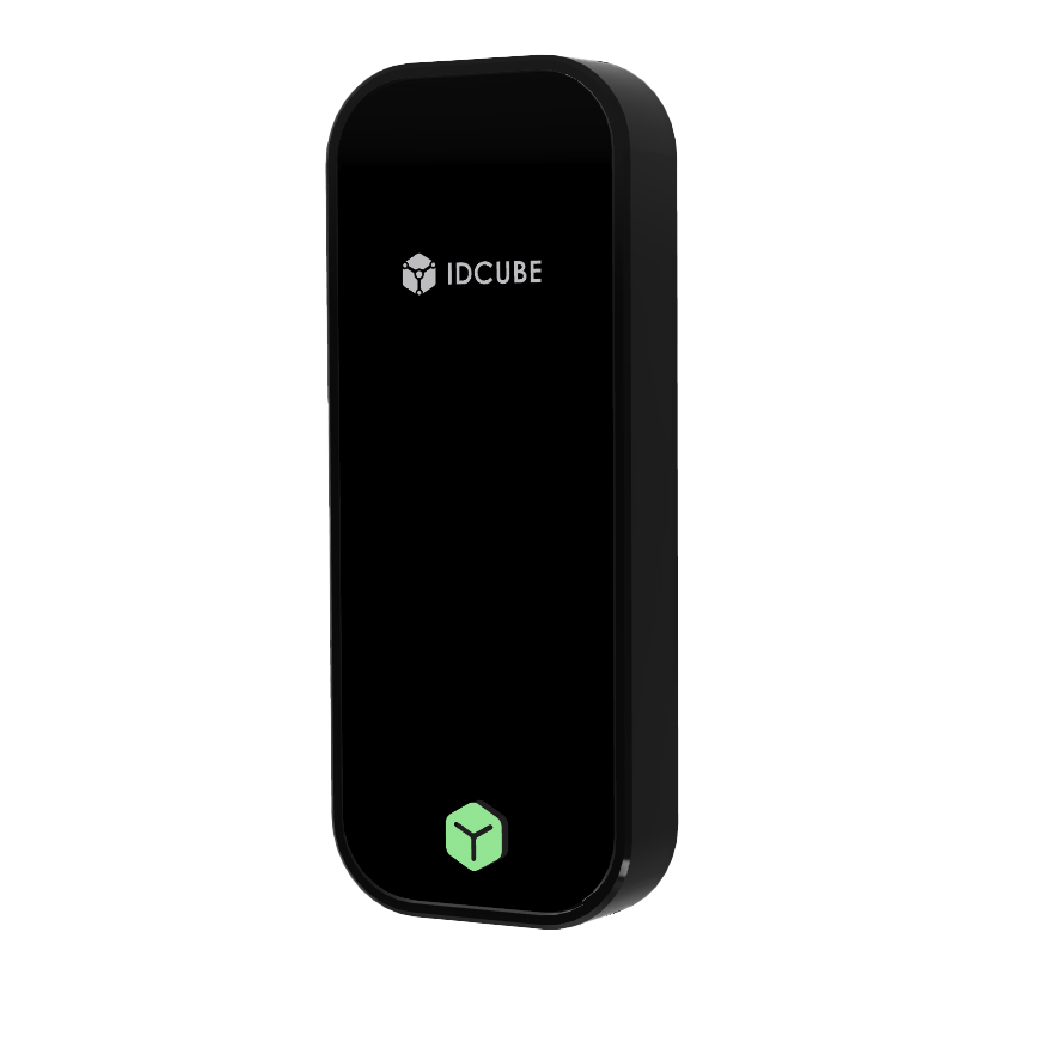

AXS+ MNND Reader
MNND
Smart card–only authentication ensures secure access control, available in a mullion-mounted form factor for compact doorframe installations.
AXS+ MNND Reader
MQND
Dual-credential flexibility with smart cards and dynamic QR codes, designed in a
mullion-mounted profile for
slim spaces.

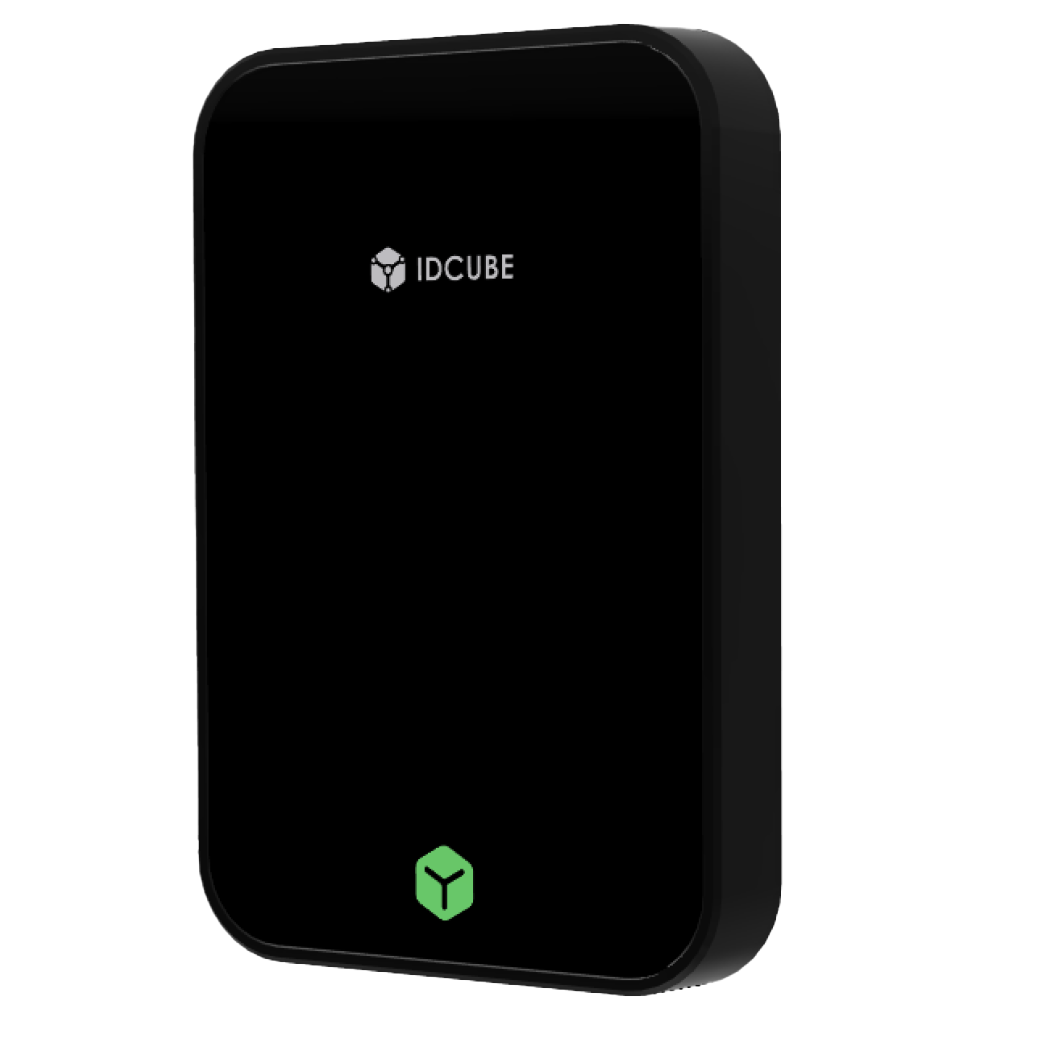

AXS+ GNND Reader
GNND
Smart card–based authentication with reliable performance, built into a gangbox-mounted reader for standard wall-box installations.
AXS+ GNND Reader
GQND
Multi-credential access with smart cards and dynamic QR codes, integrated into a gangbox-mounted design for robust deployments.
AXS+ GQND

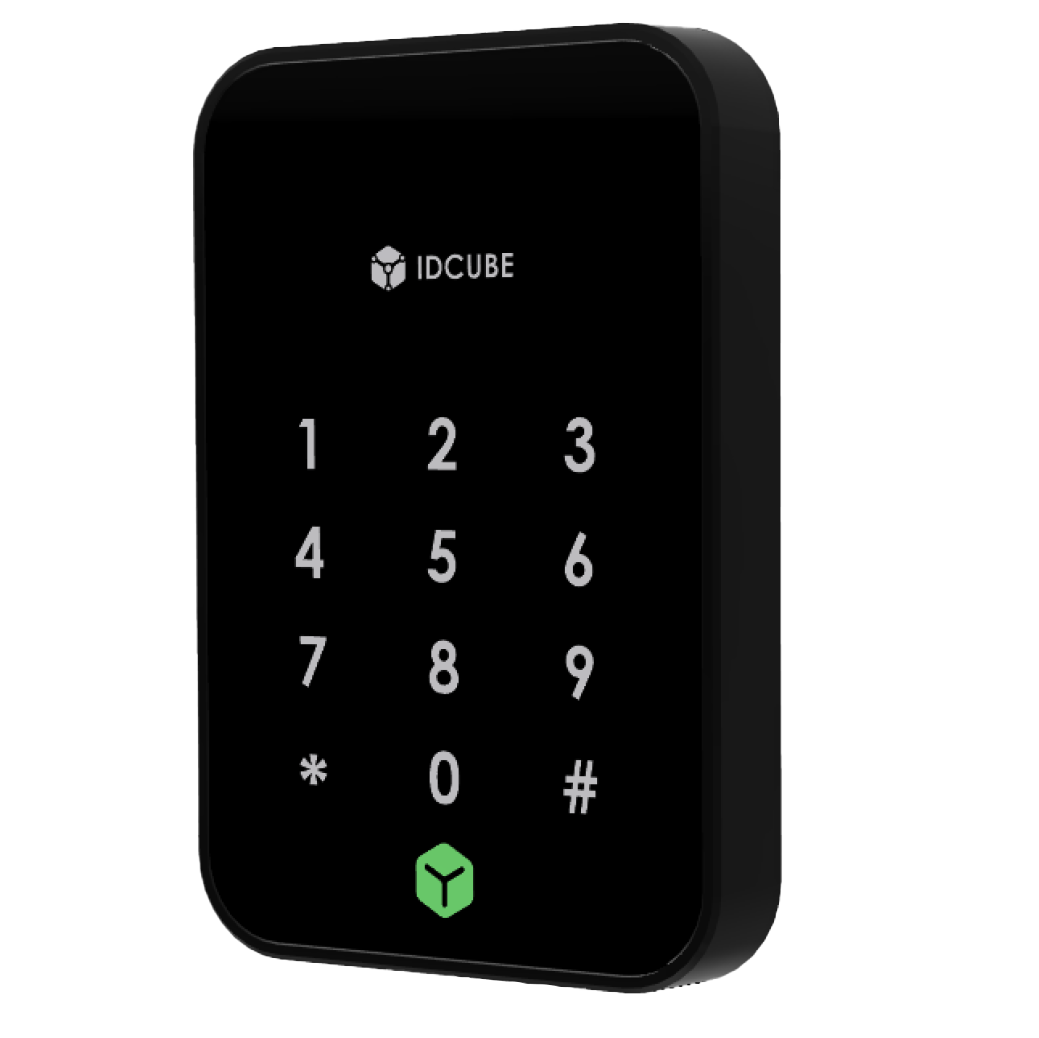

GNKD
Two-factor security using smart card plus PIN authentication, offered in a gangbox-mounted configuration for regulated environments.
AXS+ GQND
GQKD
Three-mode access with smart cards, dynamic QR codes, and PINs, available as a gangbox-mounted reader for maximum flexibility.

Why choose AXS+
Access Control Reader?

Security Shield icon

Enhanced security

Dynamic QR codes refresh every 5 seconds, and secure communication protocols like OSDP-SC protect against cloning and unauthorised use.

ID card icon

Multi-credential flexibility

Supports mobile credentials (BLE, NFC wallets), RFID smart cards, and QR codes, making it suitable for diverse users and visitors.

Convenient user experience

Mobile credentials and QR code access reduce reliance on physical cards, enabling faster and frictionless facility entry.

icon

Durability in all environments

Rugged IP65/IK07 design ensures long-lasting performance across premium indoor spaces and harsh outdoor conditions.

icon_Holisticexcellence

Seamless
deployments

Easy to install in varied facility layouts with flexible mounting options, saving time during rollout.

Mobile icon

Unified visitor & workforce Access

A single multi-credential access control reader manages both employees and visitors, streamlining operations.

Designed for modern Access needs

  • Premium glass-finish design
    AXS+ blends sleek glass aesthetics with IP65 weatherproofing and IK07 impact resistance, ensuring reliability indoors or outdoors. It enhances modern spaces like offices and residences while delivering rugged durability for gates, parking, and industrial environments.
  • Flexible mounting & form factors
    Available in Mullion and Gang box variants, AXS+ adapts seamlessly to narrow door frames, wall surfaces, and switch-box fittings. This flexibility reduces installation challenges and ensures a consistent, professional user experience across multiple sites.
  • Multi-credential advantage
    AXS+ supports smart cards, PINs, mobile credentials, and dynamic QR codes within a single device. Organisations can transition from traditional cards to mobile-first access while offering employees, visitors, and residents the flexibility to choose preferred credentials.
  • Universal mobile compatibility
    AXS+ uses dynamic QR codes compatible with any smartphone—any OS, brand, or region. Unlike NFC or BLE-only readers, it enables frictionless global deployments without device restrictions or costly OS-specific integrations.
  • Discover more
Access control readers
Access control credentials

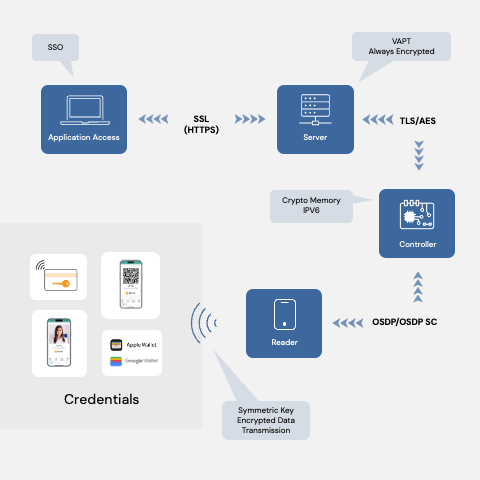

  • Secure & encrypted communication
    Supporting Wiegand, OSDP, and OSDP-SC protocols, AXS+ ensures encrypted communication with PACS controllers. This prevents credential interception or spoofing attempts while aligning with global access control standards for future-ready, enterprise-grade security.
  • App-based configuration
    AXS+ can be configured and upgraded directly via IDCUBE’s mobile app using Bluetooth (BLE), delivering flexibility and scalability as security requirements evolve across facilities.

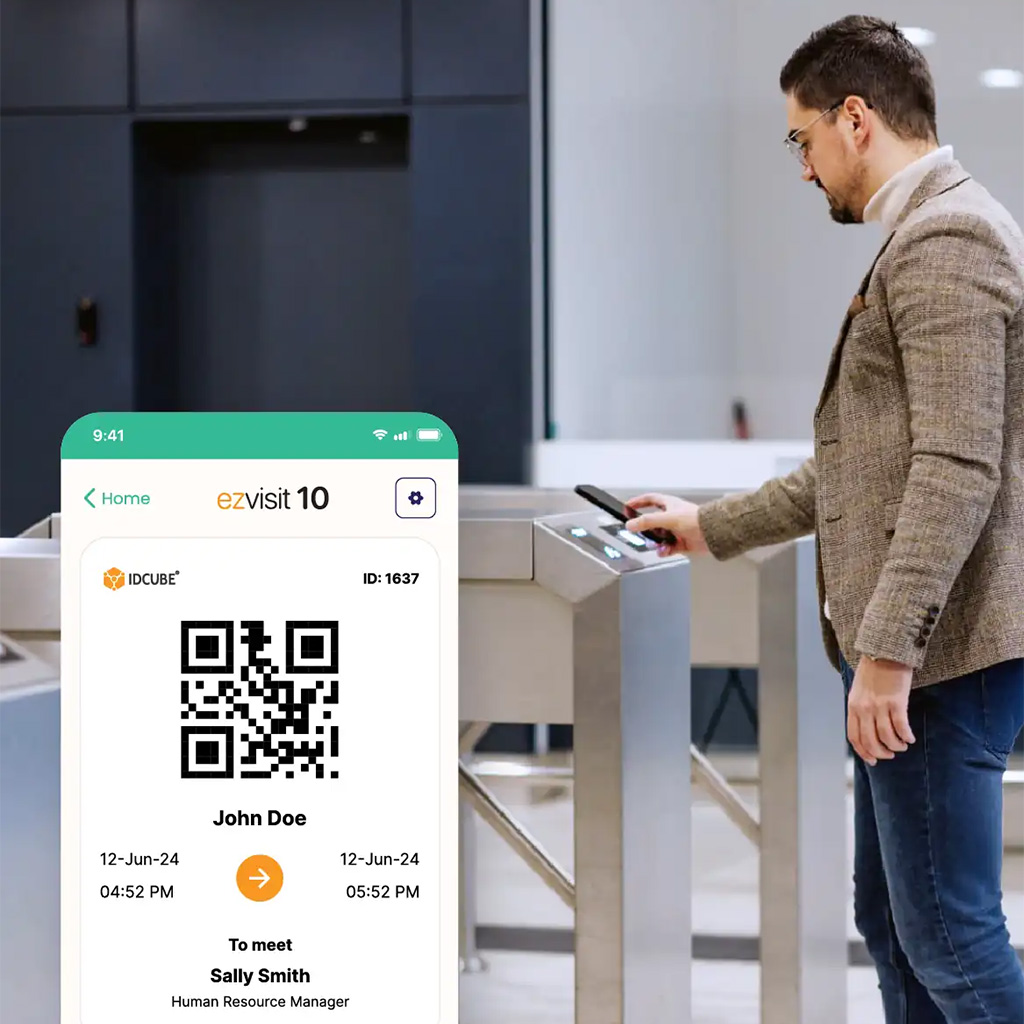

  • Seamless visitor Access
    AXS+ doubles as a visitor access reader, issuing instant QR-based passes without plastic badges or manual processes. One device serves both employees and guests, simplifying access management, reducing infrastructure costs, and ensuring smooth visitor experiences.
  • Discover more
Visitor management solution

Specifications

Model numbers (AXS+) MNND MQND GNND GQND GNKD GQKD
Reader images MNND MQND GNND GQND GNKD GQKD
13.56 MHz / NFC credential compatibility MIFARE Mini, MIFARE 1K, MIFARE 4K, MIFARE Ultralight, MIFARE DESFire EV1/EV2, NFC
QR code symbologies* 2D: PDF417, QR Code, Micro QR, Data Matrix
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey
Typical read range MIFARE Classic, MIFARE DESFire EV1/EV2 & ISO14443A Single Technology Cards – 1.6 to 4 in (4 to 10 cm)
Dynamic QR code – 10 to 50 cm
Classic QR read range – 10 to 50 cm
Test device: iPhone 14, actual QR code size 40mm × 40mm (6.01 screen size)
QR code image sensor/focusing* 640*480 CMOS / Red LED (625nm)
QR code sensor – Yes – Yes – Yes
Ingress & impact protection IP65 & IK07
Device management IDCUBE AXS+ config app (App Store / Google Play)
Color Black
PIN pad – – – – 3x4 capacitive touch backlit
Dimensions (W × D × H) 1.9 in × 4.7 in × 0.6 in
(48 mm × 120 mm × 15 mm)
MNND Dimensions 		3.1 in × 4.7 in × 0.6 in
(80 mm × 120 mm × 15 mm)

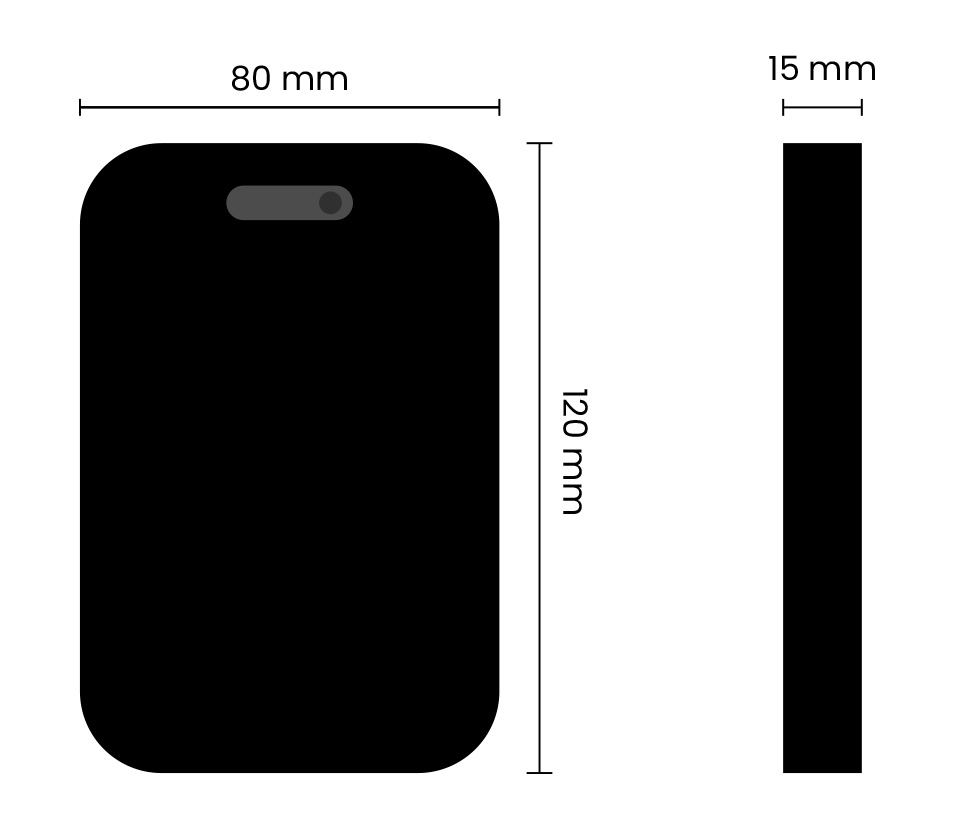

MQND Dimensions
Product weight 98 g 154 g
Operating voltage 12V DC
Current draw Idle: 100 mA @12V
Peak: 200 mA @12V
Device input & output Input: RLED, GLED, BUZZER (Active Low)
Output: Tamper
Operating temperature & humidity -35°C to +70°C (-31°F to 158°F)
0% to 95% non-condensing
Transmit frequency 13.56 MHz, and 2.4 GHz
Communications & panel connection Wiegand and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m)
Mounting Mullion mount (Doors and flat surfaces) Gang box mount (Single gang switch box compatible)
Housing materials Polycarbonate – UL94 V0 with glass front
Certifications FCC, CE, RoHS Compliant
Warranty 5 years

* Applicable only with model number MQND, GQND, GQKD

Model numbers (AXS+) MNND MQND GNND GQND GNKD GQKD
Reader images MNND MQND GNND GQND GNKD GQKD
13.56 MHz / NFC credential compatibility MIFARE Mini, MIFARE 1K, MIFARE 4K, MIFARE Ultralight, MIFARE DESFire EV1/EV2, NFC
QR code symbologies* 2D: PDF417, QR Code, Micro QR, Data Matrix
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey
Typical read range MIFARE Classic, MIFARE DESFire EV1/EV2 & ISO14443A Cards – 1.6 to 4 in (4 to 10 cm)
Dynamic QR – 10 to 50 cm
Classic QR – 10 to 50 cm
Test device: iPhone 14, QR size 40mm × 40mm
QR code image sensor / focusing* 640×480 CMOS / Red LED (625nm)
QR code sensor – Yes – Yes – Yes
Ingress & impact protection IP65 & IK07
Device management IDCUBE AXS+ config app (App Store / Google Play)
Color Black
PIN pad – – – – 3x4 capacitive touch 3x4 capacitive touch
Dimensions (W × D × H) 1.9 in × 4.7 in × 0.6 in
(48 mm × 120 mm × 15 mm)
3.1 in × 4.7 in × 0.6 in
(80 mm × 120 mm × 15 mm)
Product weight 98 g 154 g
Operating voltage 12V DC
Current draw Idle: 100 mA @12V
Peak: 200 mA @12V
Device input & output Input: RLED, GLED, BUZZER
Output: Tamper
Operating temperature & humidity -35°C to +70°C
0% to 95% non-condensing
Transmit frequency 13.56 MHz, 2.4 GHz
Communications & panel connection Wiegand & RS-485 Half Duplex (OSDP) via Pigtail
Mounting Mullion mount Gang box mount
Housing materials Polycarbonate – UL94 V0 with glass front
Certifications FCC, CE, RoHS Compliant
Warranty 5 years

* Applicable only with MQND, GQND, GQKD

Discover more with us

Complete solution overview and technical details

Download now

Certifications & compliance

VAPT.svg
ISO9001.svg
ISO27001.svg
ISO27018.svg
ISO45001.svg

Frequently asked questions

IDCUBE AXS+ access control readers support smart cards, mobile credentials, dynamic QR codes, and PINs, making them versatile for modern access control environments.

Yes. AXS+ readers integrate seamlessly with PACS controllers that support OSDP, OSDP-SC (Secure Channel), and Wiegand protocols, ensuring smooth deployment with both legacy and next-generation systems.

AXS+ access control readers are available in mullion-mount and gangbox-mount variants, designed for easy installation on doors, wall boxes, and turnstiles.

Yes. With dynamic QR codes and NFC smartcards, IDCUBE AXS+ access control readers enable secure, contactless mobile access across all devices and platforms.

These readers feature IP65 and IK07-rated protection, encrypted OSDP-SC communication, and dynamic QR codes that refresh every 5 seconds, preventing cloning and unauthorized use.

Yes. AXS+ access control readers can act as a single device for employees and visitors, supporting QR-based visitor e-passes for smooth and secure entry.

Absolutely. By adopting virtual and mobile credentials, AXS+ readers can reduce credential issuance costs by up to 90%, while simplifying administration.

Yes. IDCUBE AXS+ readers support eco-friendly credentialing by reducing plastic card usage and enabling a green, paperless access control strategy.
