UHF credentials

Long-range credentials for smarter vehicle access

IDCUBE UHF credentials are designed for long-range vehicle identification at parking areas, industrial sites, campuses, and controlled vehicle entrances. The ASSA portfolio includes ASSA Flex for windscreen mounting, ASSA Flex HL for headlight mounting, ASSA PVC as a portable card or keychain credential, and ASSA Dual for deployments that require both vehicle and door access.

Used with compatible IDCUBE long-range readers such as IDLR-06 and IDLR-12, the UHF credentials support vehicle identification without close-range card presentation. ASSA Dual combines UHF with HF MIFARE Classic or DESFire technology, enabling one physical card to work with compatible long-range vehicle readers and HF door readers. Read distance varies by credential type, reader, mounting method, and installation conditions.

UHF credential portfolio

Choose the ASSA UHF credential that fits how vehicle access is managed at your site, from fixed windscreen and headlight labels to portable cards and a dual-technology option for vehicle and door access.

ASSA Flex

A passive UHF RFID label for windscreen-mounted vehicle identification. ASSA Flex comes pre-encoded with a unique 26-bit identifier and is available in tamper-proof and non-tamper-proof variants. The tamper-proof version is designed to become permanently non-functional if removal is attempted after installation.

ASSA Flex HL

A passive UHF RFID label designed specifically for vehicle headlights. ASSA Flex HL is tamper-proof, pre-encoded with a unique 26-bit identifier, and designed to be damaged and rendered non-functional if removed after installation.

ASSA PVC

A portable passive UHF RFID credential for vehicle owners and drivers. ASSA PVC is available as a PVC card or keychain credential, comes pre-encoded with a unique 26-bit identifier, and works with compatible IDCUBE IDLR-06 and IDLR-12 long-range readers.

ASSA Dual

A dual-technology smart card for vehicle and door access. ASSA Dual combines passive UHF RFID for compatible long-range readers with 13.56 MHz HF technology available in MIFARE Classic and DESFire EV1 variants. This allows one card to support compatible vehicle identification and door access.

Access control software for UHF credential deployment

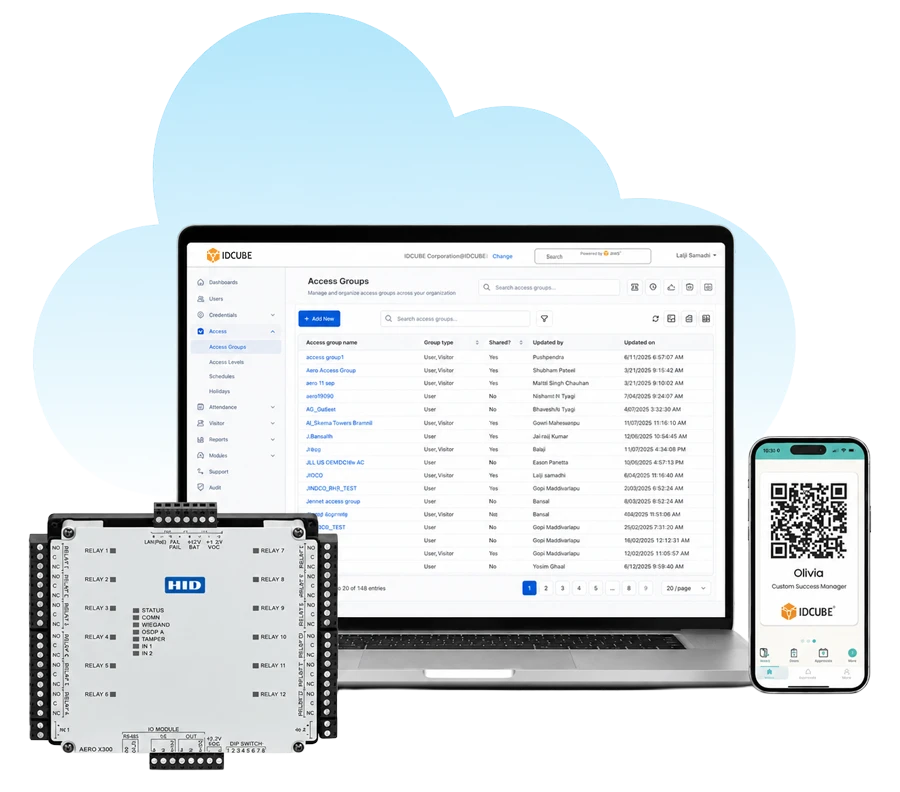

Manage supported UHF vehicle credentials and access permissions through Access360. Access360.AI provides cloud-based administration across connected sites, while Access360 Helix keeps the core access-control environment within customer-controlled infrastructure.
Cloud-based access control for centralised credential and access management across connected sites.


  • SaaS cloud deployment
  • Centralised multi-site management
  • Mobile credential support
  • Remote web and mobile administration
Know more about Access360.AI Software

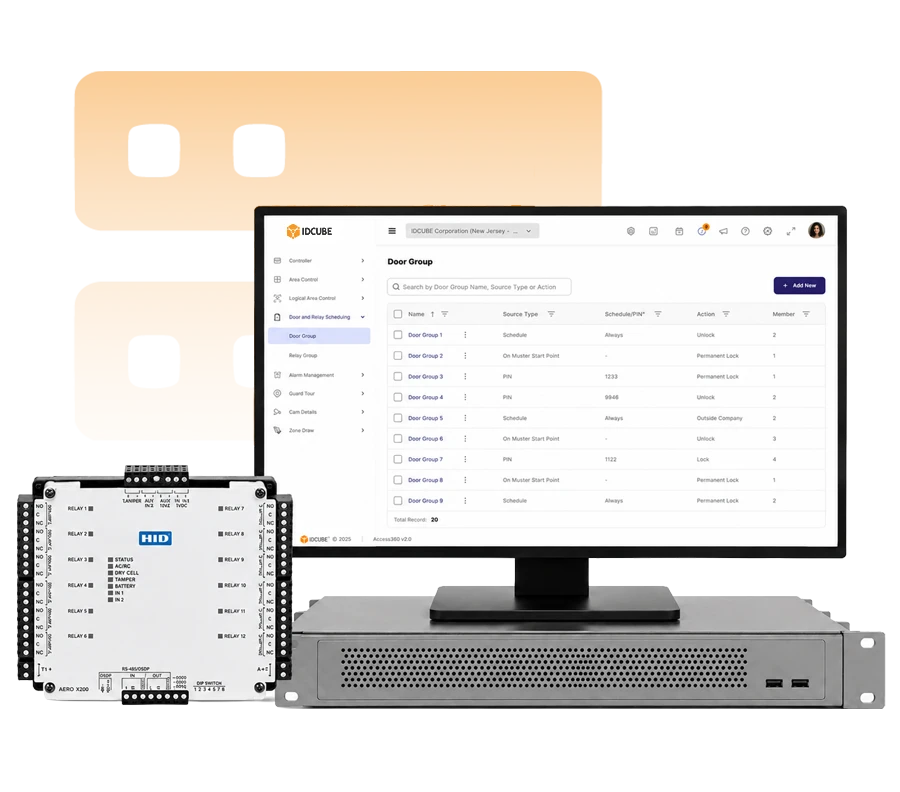

On-premises or private-cloud access control for organisations that want credential management within their own infrastructure.

  • Unified credential lifecycle
  • Centralised access rights
  • Customer-controlled infrastructure
  • Enterprise integrations
Know more about Access360 Helix Software

Need help choosing the right UHF credential?​

Share your vehicle-access setup, reader environment, mounting preference, and whether the credential should stay with the vehicle or with the driver. Our team can help you choose the right ASSA UHF credential for your deployment.

    Which UHF credential fits your vehicle access needs?
    Compare ASSA Flex, ASSA Flex HL, ASSA PVC, and ASSA Dual by mounting method, portability, reader compatibility, and intended use across vehicle and mixed-access environments.
    Consideration ASSA Flex ASSA Flex HL ASSA PVC ASSA Dual
    Credential type Passive UHF RFID label Passive UHF RFID label Portable UHF RFID card / keychain Dual-technology UHF + HF smart card
    How it is used Fixed to the vehicle windscreen Fixed to the vehicle headlight Carried by the driver or user Carried by the user
    Available format Tamper-proof or non-tamper-proof label Tamper-proof headlight label PVC card or keychain PVC card
    Primary application Fixed vehicle identification Fixed vehicle identification where headlight mounting is required Portable vehicle access Combined vehicle and door access
    Technology UHF RFID UHF RFID UHF RFID UHF + MIFARE Classic or DESFire
    Compatible readers IDCUBE IDLR-06 and IDLR-12 IDCUBE IDLR-06 and IDLR-12 IDCUBE IDLR-06 and IDLR-12 IDCUBE IDLR-06 / IDLR-12 plus compatible MIFARE/DESFire readers
    Best choice when The credential should remain associated with a specific vehicle A headlight-mounted credential is preferred The credential needs to stay with the driver rather than the vehicle One card is required for both vehicle and building access
    Not sure which credential is right for your facility?

    Benefits of UHF credentials

    Easier Vehicle Entry

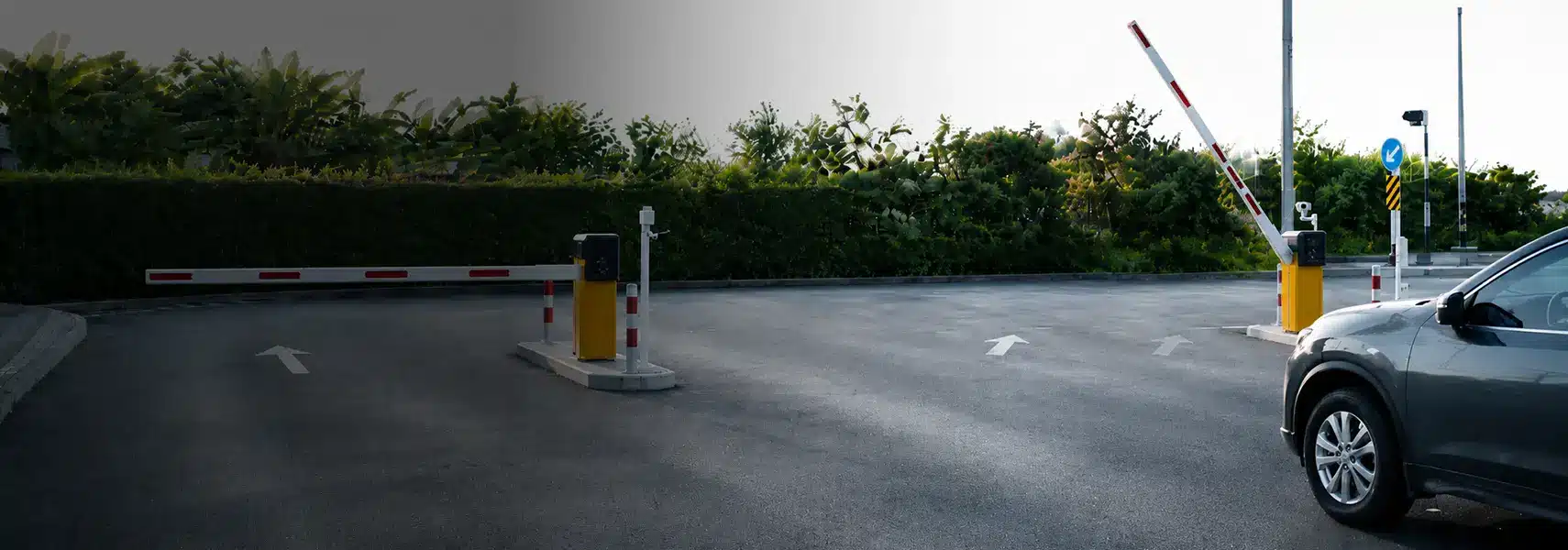

    Help authorized vehicles move through parking areas and controlled gates without stopping for close-range card presentation, using ASSA UHF credentials with compatible IDCUBE long-range readers.

    Better User Fit

    Choose the credential around how access actually works at the site. ASSA Flex and Flex HL stay with the vehicle, while ASSA PVC can remain with the driver.

    Vehicle Association

    Use the tamper-proof ASSA Flex variant or ASSA Flex HL when the credential needs to remain tied to a specific vehicle and discourage transfer between vehicles.

    Lower Maintenance

    ASSA UHF credentials use passive RFID technology, so the credential itself requires no battery or routine battery replacement during normal use.

    Portable Access

    Choose ASSA PVC when a permanently mounted windscreen or headlight credential is not practical. Card and keychain formats give drivers a removable UHF access option.

    Unified Access

    Use ASSA Dual where one credential needs to serve both the vehicle gate and the building. It combines UHF with MIFARE Classic or DESFire for compatible readers.

    UHF credential datasheets

    Long Range UHF Credentials

    Long Range Credential - ASSA Flex / ASSA Flex HL / ASSA PVC / ASSA PVC DUAL
