HID Aero Controllers - ICA series​

Unparalleled security integration between HID controller and Access360 platform across the United States
Enquire now

Trusted by 1000+ organisations worldwide

AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
AI access control
Built on the HID Aero controller platform, the IDCUBE ICA Series gives enterprises a reliable and open foundation for physical access control. It combines proven HID controller hardware with a Linux-based, IP-enabled architecture. The platform supports OSDP Secure Channel, AES-256 encryption, TLS, and hardware-based protection for keys and passwords. This helps secure credential data from the reader to the host.

HID Aero controller integrates with Access360 Helix for on-premises deployments and Access360.AI for cloud-based environments. This enables centralised configuration, real-time monitoring, and consistent access policies across sites, with the flexibility to scale as security requirements change.

Engineered for secure, scalable deployments

ICA panels offer secure, cloud-integrated access control with seamless Access360 compatibility. Deploy the configuration that matches your environment.
HID Aero X1100C Controller Intelligent Controller – ICM Series
Manages two doors locally and scales to sixty-four readers, with robust cybersecurity, expansion modules, and high-capacity credential processing.
HID Aero X100 Door/Reader Interface Module – ICM Series
Supports two doors, up to four readers, seven supervised inputs, and four relay outputs for reliable access control.
HID Aero X200 Input Monitor Interface Module – ICM Series
Monitors up to sixteen general-purpose inputs, provides two relay outputs, and supports custom rules with supervised input processing.
HID Aero X300 Output Control Interface Module – ICM Series
Controls up to twelve general-purpose outputs, monitors four points, and supports elevator control through X1100 intelligent controller integration.

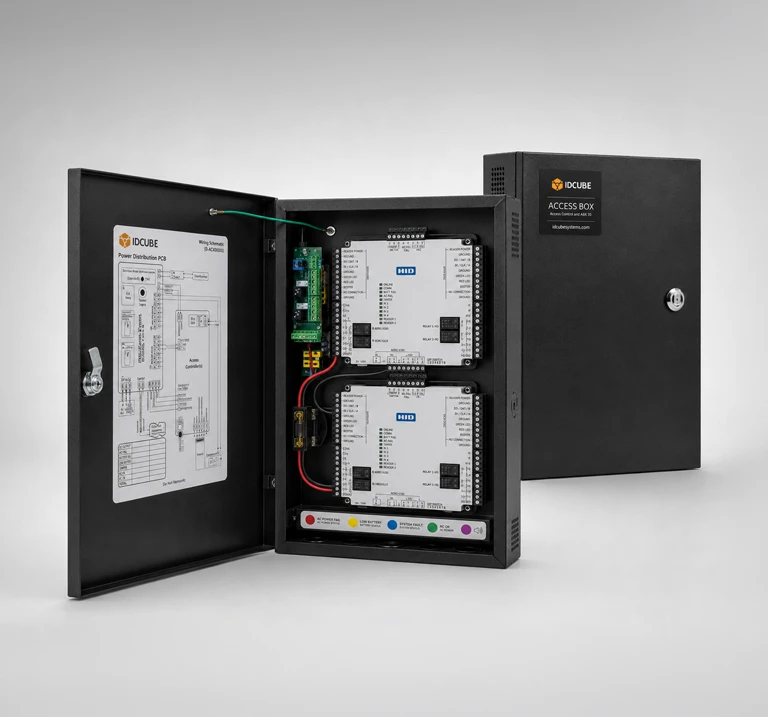

Access Box: A secure home for HID Aero controllers

IDCUBE Access Box provides a secure, tamper-protected, and organised enclosure for IDCUBE ICA Series controllers powered by HID Aero. It houses the controller, power supply, battery, wiring, and interface modules in one robust, powder-coated steel enclosure. A key lock prevents unauthorised access, while selected models include a tamper switch. Built-in electrical protection supports safer operation. Multiple enclosure sizes simplify installation, maintain neat cabling, ease maintenance, and support future system expansion.

Explore more about IDCUBE Access Box.

  • Organised Setup
  • Faster Installation
  • Cleaner Maintenance
  • Expansion Ready

Choose the Access360 platform that fits your deployment

Access360.AI

Manage access control across multiple sites with remote visibility, faster rollout, and lower dependency on local server infrastructure.

  • Centralised multi-site management
  • Remote user and credential updates
  • Modern mobile-first access workflows
  • Scalable cloud-based deployment
Know more about Access360.AI Software

Access360 Helix

Deploy access control within your own infrastructure while maintaining enterprise-grade control, integrations, and advanced access workflows.

  • Local infrastructure control
  • Enterprise integrations
  • Advanced access policy management
  • Suitable for high-control environments
Know more about Access360 Helix Software

Need help choosing the right solution?​

Share a few details about your workplace, and our team will help you explore the right Access Control setup for your sites, workflows, and security needs.

  • Expert Guidance
  • Seamless Integration Support
  • Customized Project Consultation
  • Faster Deployment Planning
  • Global Expertise, Local Support

    Integrated IDCUBE Solutions for HID controller

    Access Master

    Experience top-tier access control security with 'Access Master' - your all-in-one solution for access control and alarm management.

    Access Control sm

    attendio 5

    Streamline attendance and leave management featuring shift scheduling and reporting with automation.

    Attendance Management sm

    ezvisit 10

    Seamless visitor entry with our workflow-driven automation, from gated communities to high-security facilities.

    Visitor Management sm

    AInsights

    Get ahead of security threats with AI-powered dashboards for monitoring safety protocols and identifying vulnerabilities.

    AInsights sm

    GreenID

    Manage credentials, visitors, and attendance on the go with a secure mobile app built for every user.

    GreenID sm

    Benefits

    Cyber Fortress

    Unmatched cyber resilience with end-to-end encryption via TLS protocols, crypto memory chip, HTTPS, and more.

    Unrivaled Reliability

    Our panels set the standard with top-notch MTBF, temperature, and humidity ratings, ensuring peak performance and durability.

    Future Network Ready

    Get future-ready networking with IPv4 and IPv6 protocol support.

    Effective Security

    Realize and make complex security protocols more effective with advanced features such as occupancy control, multi-man rule, and more.

    Certified Quality

    Our extensive certifications ensure the delivery of high-quality products that comply with global security, safety, health, and environmental standards.

    Versatile Compatibility

    Secure and futureproof your facilities with support for legacy and modern reader protocols - Wiegand, OSDP, OSDP SC, and more.

    Seamless Monitoring

    Ensure cost-efficient, secure workspaces with centralized monitoring using SNMPv3/v2c.

    Master-Slave Architecture

    Enable a simple Master-Slave cabling architecture to match legacy HID VertX and other brand architectures, reducing the need for re-cabling on retrofit projects.

    Features

    • Scalable architecture
      The HID controller can scale as requirements change. Additional doors, readers, inputs, and outputs can be added without redesigning the complete access control system.
    • Open integration
      The HID controller based on open architecture that works with compatible access control software and hardware, making it easier to connect, upgrade, or migrate systems without replacing the existing infrastructure.
    • Advanced cybersecurity
      Incorporates a security-focused design to protect system communication, ensure data integrity, and maintain secure access control operations.
    • Operational continuity
      The HID controller is built for reliable operation in demanding environments, helping maintain stable access control performance while reducing downtime, maintenance work, and replacement needs.
    Multi credentials
    • Multi-credential support
      Works with multiple credential technologies through compatible readers and platforms, supporting multiple identity methods within access control systems.

    Specifications

    Controller type HID Aero X1100C HID Aero X100 HID Aero X300 HID Aero X200
    Description Intelligent controller that stores credentials, makes access decisions and manages expansion modules. Door and reader module used to add controlled access points and readers. Output module used for elevators, alarms and auxiliary equipment. Input module used for monitoring alarms, sensors and equipment status.
    Access points Controls 2 access points onboard and scales up to 64. Adds control for up to 2 access points. Not applicable Not applicable
    Reader support Supports up to 4 OSDP or 2 Wiegand readers onboard and scales to 64 readers. Supports up to 4 OSDP or 2 Wiegand readers. No reader interface No reader interface
    Inputs 7 supervised or unsupervised inputs for door and system monitoring. 7 supervised or unsupervised inputs for door and system monitoring. 5 supervised or unsupervised inputs. 19 supervised or unsupervised inputs, including 16 general-purpose inputs.
    Outputs 4 Form-C relays rated up to 5 A at 30 VDC resistive. 4 Form-C relays rated 2 A at 30 VDC resistive. 12 Form-C non-latching relays rated 2 A at 30 VDC resistive. 2 Form-C non-latching relays rated 2 A at 30 VDC resistive.
    Maximum capacity Supports up to 64 access points, 64 readers, 615 inputs and 388 outputs. Adds doors and readers within the X1100C system capacity. Adds controlled outputs within the X1100C system capacity. Adds monitored inputs within the X1100C system capacity.
    Controller capacity Stores up to 250,000 credentials and 500,000 transactions. Managed by the X1100C. Managed by the X1100C. Managed by the X1100C.
    Communication and security Supports 10/100 Ethernet, TLS 1.2 or TLS 1.3, AES-256 communication and secure boot. Uses encrypted I/O bus communication with OSDP and AES-256 support. Uses encrypted I/O bus communication with AES-256 encryption. Uses encrypted I/O bus communication with AES-256 encryption.
    Power requirement 12–24 VDC ±10%, maximum 1.9 A. 12–24 VDC ±10%, maximum 1.5 A. 12–24 VDC ±10%, maximum 500 mA. 12–24 VDC ±10%, maximum 300 mA.
    Temperature and size 0°C to 70°C; 164 × 140 × 26 mm. 0°C to 70°C; 164 × 140 × 26 mm. 0°C to 70°C; 164 × 140 × 26 mm. 0°C to 70°C; 164 × 140 × 26 mm.
    HID Aero controller datasheets

    Aero Controller Datasheets

    HID Aero X1100C Controller Intelligent Controller Datasheet – ICA Series

    Download now

    HID Aero X100 Door/Reader Interface Module Datasheet – ICA Series

    Download now

    HID Aero X200 Input Monitor Interface Module Datasheet – ICA Series

    Download now

    HID Aero X300 Output Control Interface Module Datasheet – ICA Series

    Download now

    Proven in the real world

    How IDCUBE Centralised Access Control for Al Barakah Holding

    How IDCUBE Centralised Access Control for Al Barakah Holding

    Overview Al Barakah Holding operates some of the region’s largest workforce accommodation facilities, managing high-density residential environments where access…

    Trusted by top leading industries

    Enterprise Solution

    Enterprise

    Manage employees, contractors, visitors, credentials, restricted departments, and multiple locations through centrally governed access policies that support secure movement, consistent administration, and audit-ready visibility.

    Business park solution

    Business park

    Manage tenants, employees, visitors, vendors, and vehicles across multiple buildings, shared entrances, parking areas, common facilities, and restricted zones through centrally governed access policies.

    Multi family housing solution

    Multi-family housing

    Manage residents, visitors, staff, deliveries, vehicles, and amenity access across entrances, parking, common areas, and shared facilities while keeping everyday movement convenient and accountable.

    Data centre solution

    Data center

    Protect data halls, NOCs (Network Operations Center), server rooms, cages, network spaces, and critical infrastructure with tightly controlled permissions, monitored entry points, visitor oversight, and traceable access records.

    Education Solution

    Education

    classrooms, and events with access policies suited to different campus zones, schedules, and user groups.

    Hospitality solution

    Hospitality

    Coordinate guest, staff, vendor, contractor, and service access across guest-facing areas, back-of-house operations, kitchens, stores, offices, and restricted spaces without disrupting the hospitality experience.

    Coworking access control

    Co-working

    Support members, employees, visitors, meeting rooms, shared amenities, and flexible access schedules with permissions that can be issued, changed, or revoked as memberships and bookings change.

    G2
    What do you like best about Access360? Its intuitive and user-friendly interface combined with its comprehensive feature set. The clear separation between security configurations and HRMS-driven workflows makes administration well organized. What do you dislike about Access360? The platform is easy to use overall, but some of the advanced settings can take a little time to understand for new users. Adding more guided tutorials and in-app help would make the experience even better. Recommendations to others considering Access360: I would recommend Access360 to any organization looking for an easy-to-use access management solution. It combines access control, visitor management, identity management in one platform, attendance management making daily operations simpler. What problems is Access360 solving and how is that benefiting you? Access360 has helped streamline our physical access control and identity management processes by providing a centralized platform for managing users, credentials, visitors, and access policies along with Attendance Management systems.
    Verified User in Information Technology and Services
    Information Technology
    ★ ★ ★ ★
    G2
    What do you like best about Access360? One platform Hrview software Nice platform to work What do you dislike about Access360? Sone time it will take the time to up due to technical issues Recommendations to others considering Access360: It is very vast software What problems is Access360 solving and how is that benefiting you? Arrange the best in time product service support
    Kiran M.
    Security Manager
    ★ ★ ★ ★ ★

    Frequently asked questions

    An HID Aero controller manages access decisions for secured doors. It connects readers, credentials, locks, sensors, and access control software while storing permissions and processing access events locally.

    HID Aero is the successor to HID VertX and EDGE. It provides stronger cybersecurity, improved scalability, OSDP support, open integration, and compatibility with selected legacy VertX interface modules.

    The X1100C supports two access points and up to four OSDP or two Wiegand readers onboard. Additional interface modules can expand readers, doors, inputs, and outputs.

    Yes, HID Aero intelligent controllers can work with supported VertX V100, V200, and V300 modules. This helps organisations retain selected hardware, wiring, and connectors during system upgrades.

    Yes, HID Aero X1100C and X100 modules support OSDP and Wiegand readers. OSDP Secure Channel is recommended for encrypted, bidirectional communication, remote management, and stronger reader security.

    Yes, HID Aero can process stored access permissions and schedules locally during temporary outages. Recorded transactions can be transferred to the host system after network communication is restored.

    HID Aero protects access control data using TLS, AES-256 encryption, OSDP Secure Channel, hardware cryptography, and encrypted storage for credentials, passwords, access permissions, and security keys.

    HID Aero integrates with Access360.ai and Access360 Helix. Access360 centrally manages cardholders, credentials, doors, access rules, schedules, alarms, controller status, and access events through Aero hardware.

    HID Aero supports Access360’s access control foundation and enables connected workflows for Attendance, Visitor Management, AInsights, and GreenID. Available functions depend on readers, credentials, deployment, and system configuration.

    Access360 with HID Aero centralises security and daily operations. It improves access monitoring, visitor entry, attendance, mobile access, alarm response, reporting, and analytics while reducing manual work and complexity.
