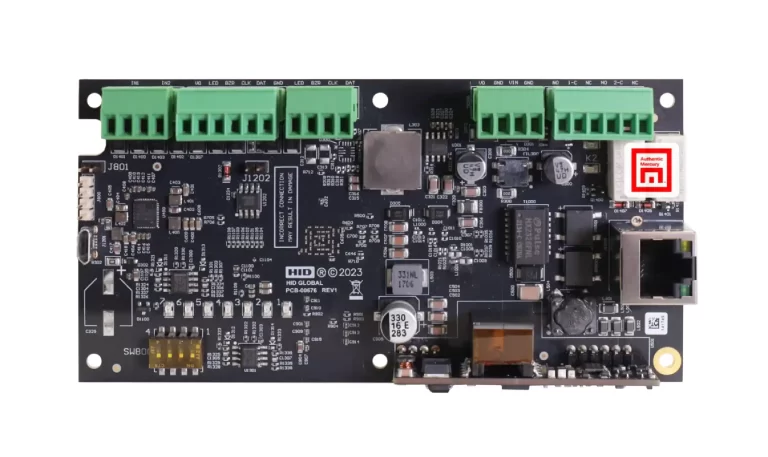

Mercury MP1501 Intelligent PoE Edge Controller – ICM Series
ICM-MP1501 mercury controller powered by Access360
Key highlights
-
High-security architecture with embedded cryptographic protection
The ICM-MP1501 incorporates a dedicated crypto memory component that safeguards encryption keys and sensitive controller data. It further strengthens overall mercury access control security, which helps in protecting against unauthorised firmware or configuration manipulation. -
Enhanced processing performance to handle access control operations
Equipped with an upgraded processor and expanded memory capacity, this ICM-MP1501 controller is built to handle high transaction volumes and large credential databases without compromising responsiveness, at the users’ end. -
Optional accessories for reinforced physical resilience
The controller is available with supported accessories, such as UL-certified power supplies, intelligent charging circuitry, battery backup options, and tamper monitoring, supporting secure and compliant security mp1501 implementations.
-
Compact edge design with scalable expansion capability

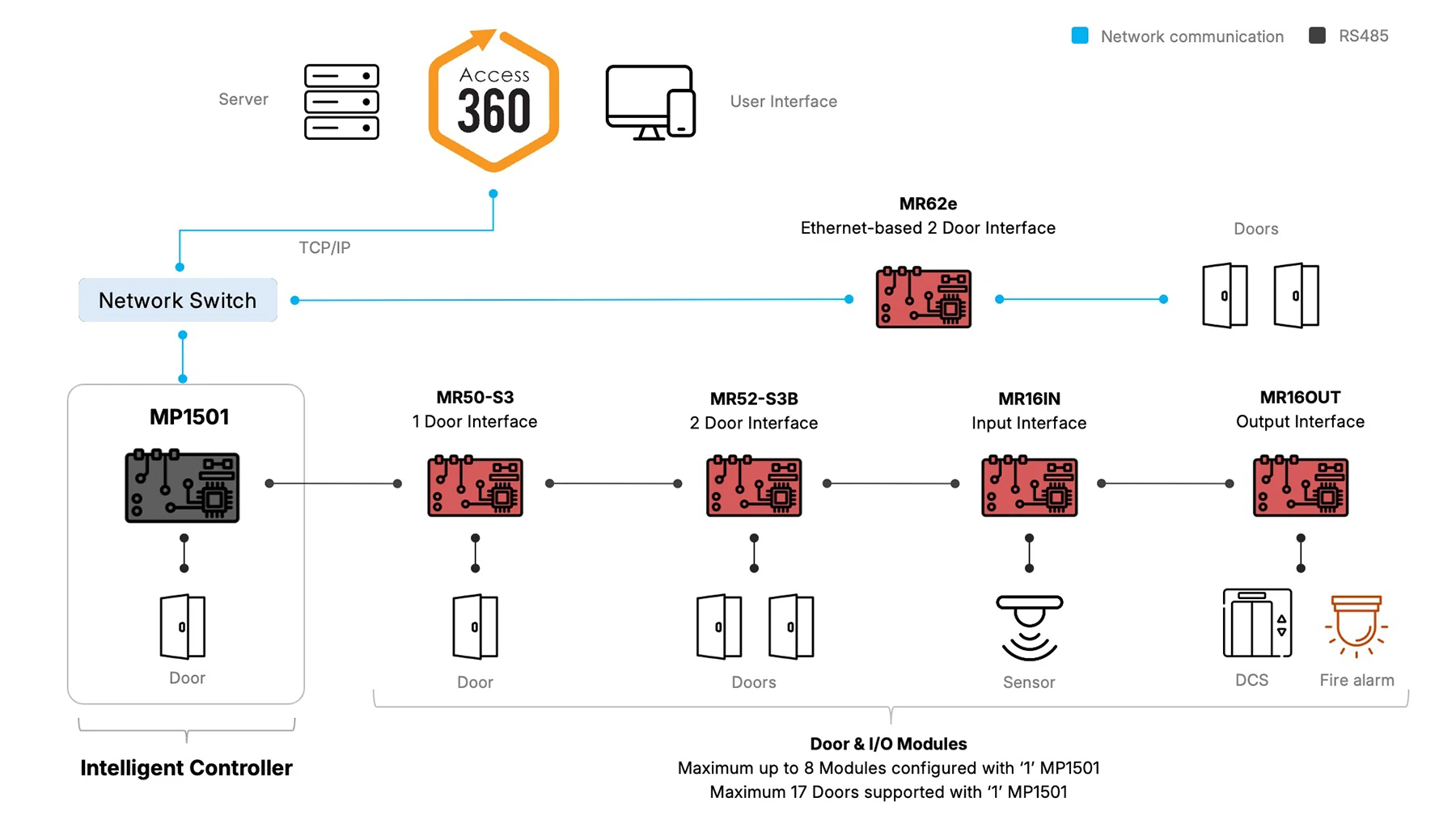

Specifically designed for edge deployments, the MP1501 controller supports up to 8 serial I/O modules or 16 MR62e network-ready door controllers, which enables management of up to 17 openings within a distributed architecture. -
Efficient installation through PoE/PoE+ support
As an intelligent poe controller, the device supports IEEE 802.3af and 802.3at compliance standards. It allows power and network connectivity over a single cable, consequently helping in simplifying deployment. Especially suitable for single-door control.
Open Access Control architecture
| Access Control Capacity | |
|---|---|
| Specifications | Particulars |
| Controller model | Mercury MP1501 intelligent controller |
| Expansion (Serial/ Network) | Supports up to 8 downstream Mercury serial (RS-485) I/O interface modules, or up to 16 Ethernet-based door controllers. |
| Native reader support | Supports up to 2 readers controlling 1 opening |
| Maximum readers support | Supports up to a maximum of 17 readers. |
| Doors/Openings | Up to 17 doors/openings (1 native + 16 downstream) |
| Memory | Supports up to 240,000 cardholders, and 500,000 transaction buffer. |
| Hardware & Compliance | |
| Specifications | Particulars |
| Part code | ICM-MP1501 |
| IP protocol support | IPv4 and IPv6 |
| Power input | IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) compliant; optional auxiliary power supported |
| Cybersecurity features | Secure boot, digitally signed firmware, AES-128/AES-256 encryption, TLS 1.2 and TLS 1.3 support |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Product compliance | UL 294 Recognized1, FCC Part 15 Class A, CE Compliant, RoHS (2011/65/EU & 2015/863), EU REACH (1907/2006), California Proposition 65, NIST Certified Encryption (in process) |
Frequently asked questions
The Mercury MP1501 is an intelligent door controller used in access control systems. It further supports two readers for one opening. If more openings are needed, it can expand using supported Mercury modules, up to 17 openings in total.
The unit runs on embedded Linux and handles access decisions at the controller level, then sends activity data back to the host access control software.
Yes, the MP1501 controller supports IEEE 802.3af (PoE) and 802.3at (PoE+). This allows both power and network communication through a single Ethernet cable. In many installations, this reduces wiring requirements and simplifies deployment, particularly in branch or retrofit environments.
Yes, the controller can be deployed within cloud-managed access control systems. While the Mercury MP1501 makes access decisions locally, configuration and monitoring can be handled through compatible platforms such as IDCUBE’s Access360 in on-premises, hybrid, or cloud- based deployments.
The Mercury MP1501 natively supports one opening/ door using two readers. With supported Mercury expansion modules, it can scale to manage up to 17 total doors. This includes one native opening and up to sixteen downstream MR62e network-ready door controllers.
Yes. The Mercury MP1501 is designed with multiple built-in security layers. It uses ARM TrustZone technology, secure boot, and a dedicated crypto chip to protect firmware and stored data. The data at rest and controller communication are encrypted using industry-standard AES and TLS protocols. Together, these controls create a layered security approach that helps safeguard sensitive access control information.
The Mercury MP1501 uses an embedded Linux platform and updated encryption standards. It adds support for features such as OSDP Secure Channel and modern TLS protocols. These enhancements align the controller with current enterprise security standards and deployment requirements compared to earlier LP and EP series models.
