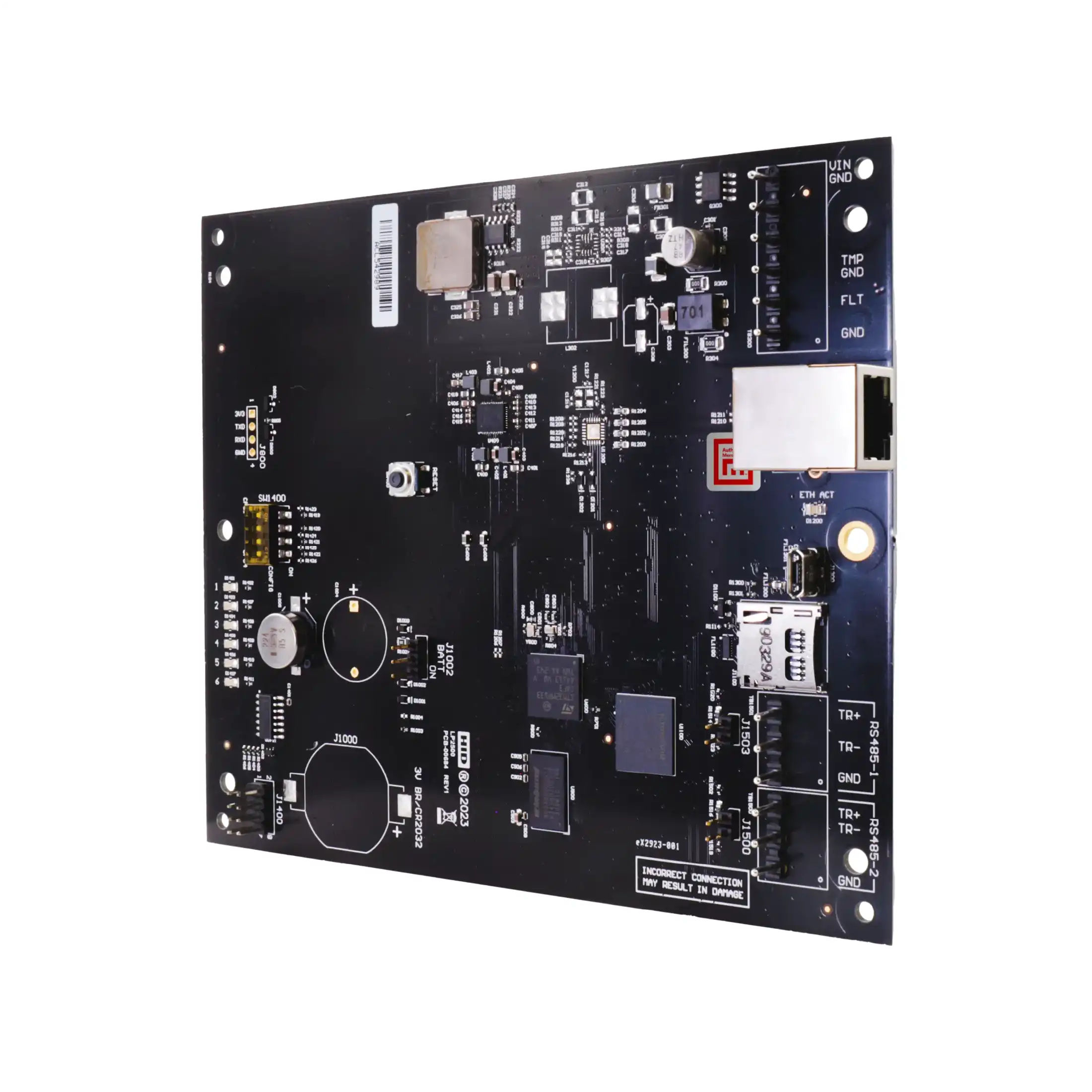

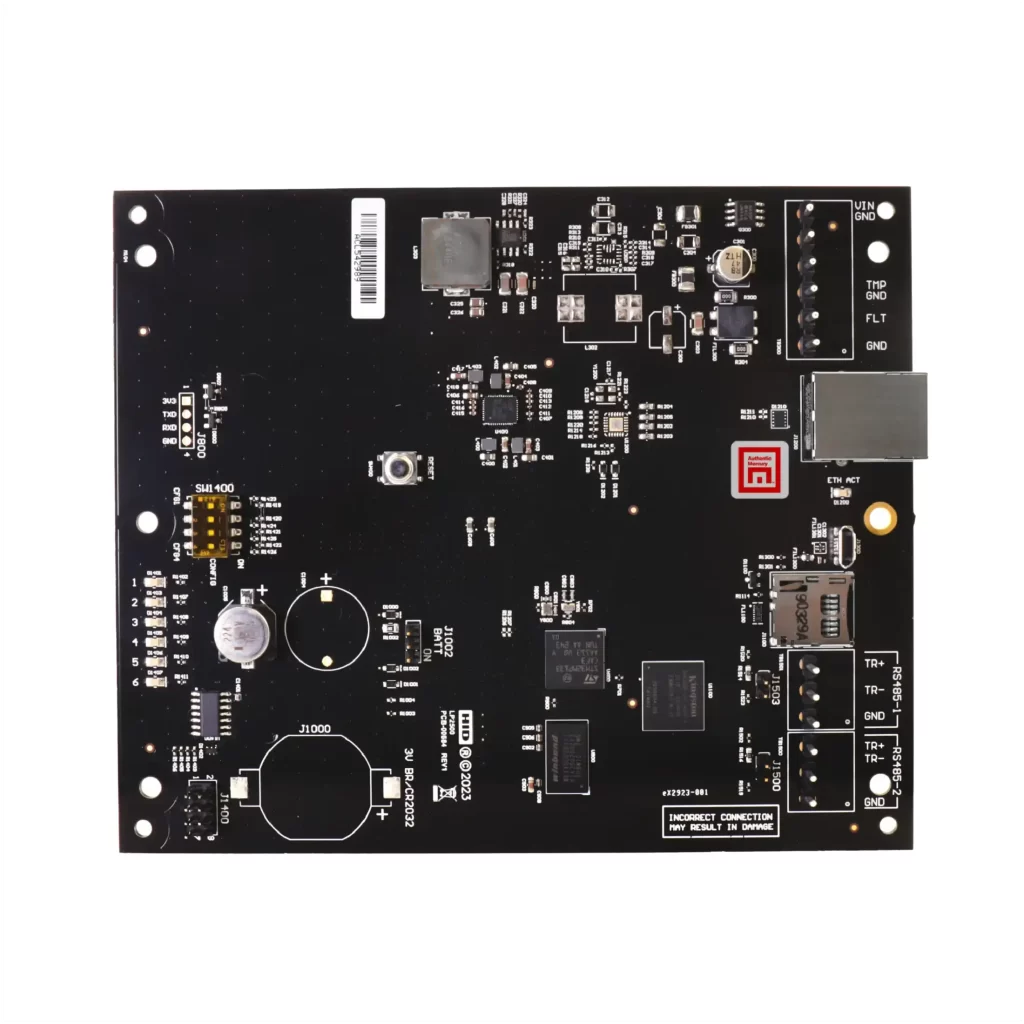

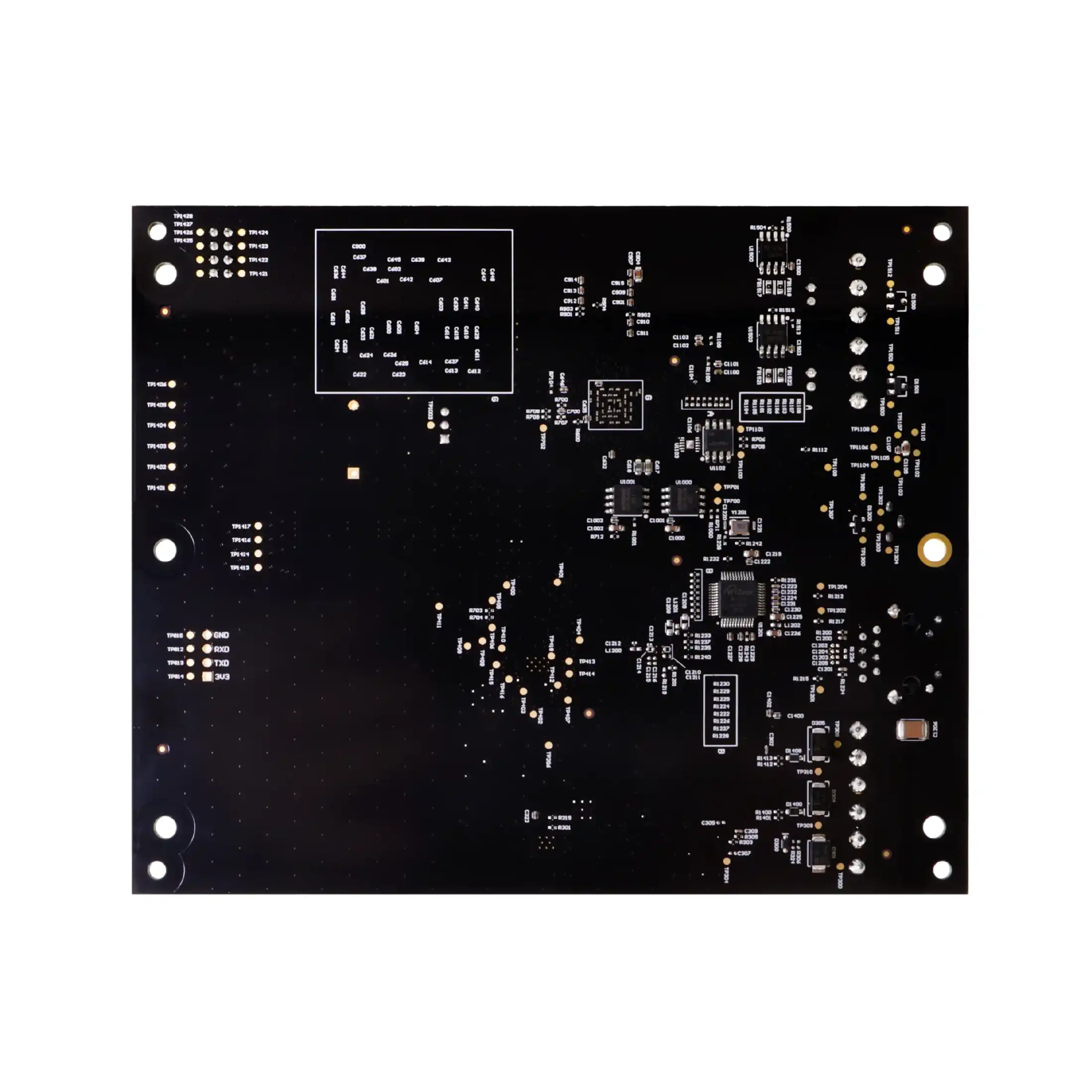

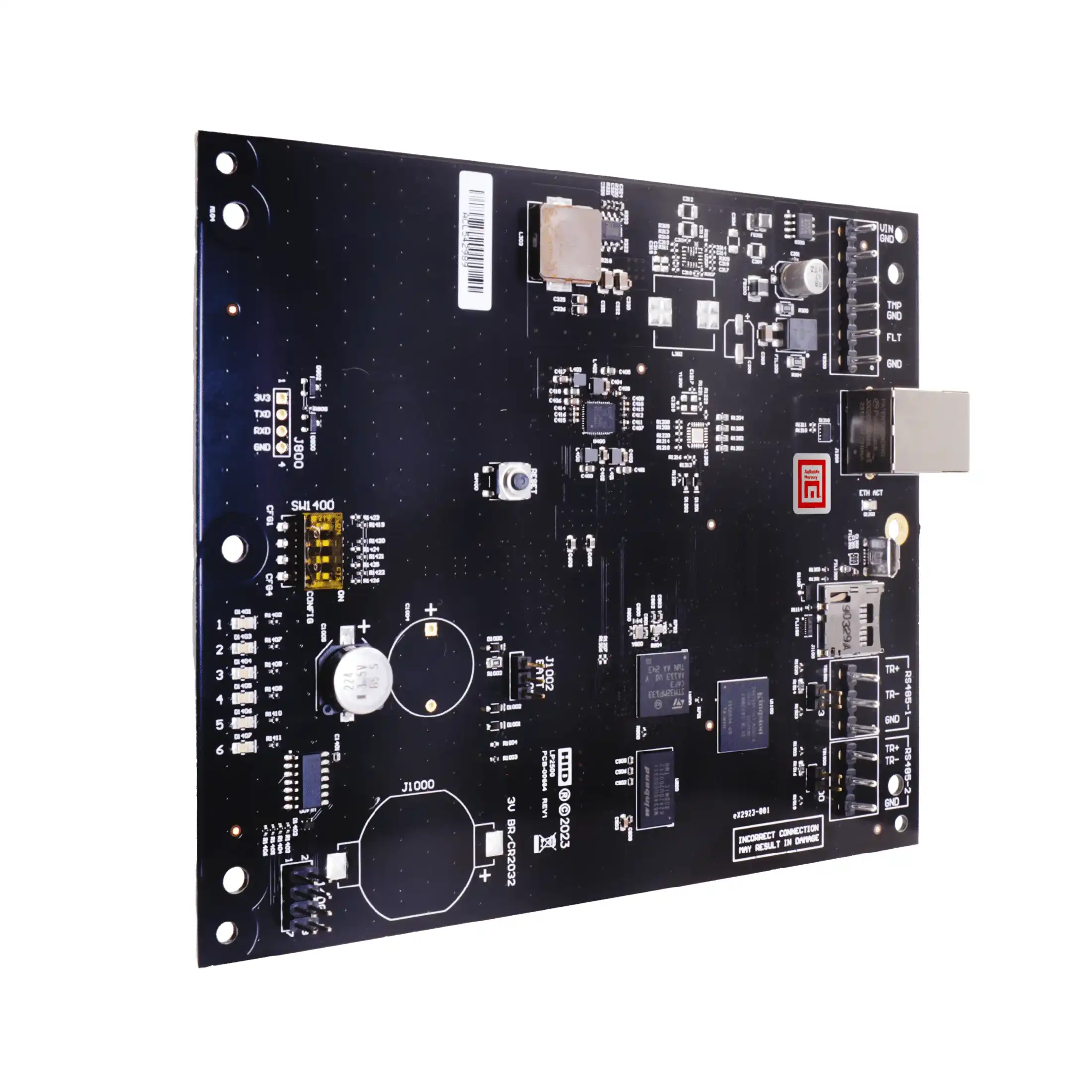

Mercury MP2500 Intelligent Controller – ICM Series

Name: Mercury MP2500 Intelligent Access Control Controller | ICM-MP2500
Brand: IDCUBE
Availability: InStock

ICM-MP2500 mercury controller powered by Access360

The ICM-MP2500 is an intelligent IP Controller with 600,000 user memory, suitable for large enterprises. It operates as a network-based controller with door management of up to 64 doors/openings via. Downstream I/O modules, without exposure to any insecure or semi-secure areas, making them suitable for high-security installations. It runs on an embedded Linux platform and has security features such as ARM TrustZone, secure boot, and encrypted communication to help protect controller data and system operations, allowing secured access control activities, alarms, and schedule management.

Mercury MP2500 Intelligent Controller - ICM Series

ICM-MP2500 mercury controller powered by Access360

Key highlights

Enhanced cybersecurity protection
Security is built into the Mercury Security MP2500 architecture. Technologies such as ARM TrustZone, secure boot validation, hardware crypto support, and encrypted data storage help protect sensitive information within mercury access control deployments.
Business continuity
Legacy LP/EP-based access control deployments can be upgraded with MP2500, ensuring business continuity with a new processor part of a multi-year longevity program, dual footprint circuit designs and the same reliable LP/EP interface and footprint.
Expanded memory capacity
Built to handle larger user bases, the MP2500 supports up to 600,000 cardholders along with a 500,000-event buffer. It keeps performance stable while handling large volumes of identities and activity data. Works well for multi-site and high-traffic environments where data keeps growing.

Edge processing capability
Processing takes place directly within the MP2500 controller, allowing access decisions, alarm handling, and scheduling tasks to run locally. The controller can also support application logic at the edge, extending intelligence closer to the door.
Scalable management
The ICM-MP2500 supports large-scale deployments with the ability to manage up to 64 doors or openings through supported expansion modules. This allows organisations to build high-density access control infrastructure from a single controller platform.

Open Access Control architecture

ICM-MP2500 controllers work with Access360 to deliver scalable network-based access control with a flexible door and I/O expansion

Technical specification

Access Control Capacity
Specifications	Particulars
Controller model	Mercury MP2500 Intelligent Controller
Expansion (Serial / Network)	Supports up to 32 RS-485 expansion modules
Maximum readers support	Up to 64 readers/ openings with supported expansion modules
Doors / Openings	Up to 64 openings
Memory	Supports up to 600,000 cardholders and 500,000 transaction buffer
Hardware & Compliance
Specifications	Particulars
Part code	ICM-MP2500
IP protocol support	IPv4 and IPv6
Power input	12–24 VDC ±10%, 500 mA maximum (reader and USB ports not included)
Cybersecurity features	ARM TrustZone, secure boot CPU, crypto chip, data-at-rest encryption, TLS 1.2/1.3, AES-128/256, 802.1X, FIPS 140-3 use of OpenSSL
Operating temperature	0°C to 70°C (32°F to 158°F)
Humidity	5% to 95% non-condensing
Product compliance	UL 294 Recognized, FCC Part 15 Class A, CE Compliant, RoHS (2011/65/EU & 2015/863), EU REACH (1907/2006), California Proposition 65, NIST Certified Encryption (in process)

Technical documentation

Mercury MP2500 controller datasheet

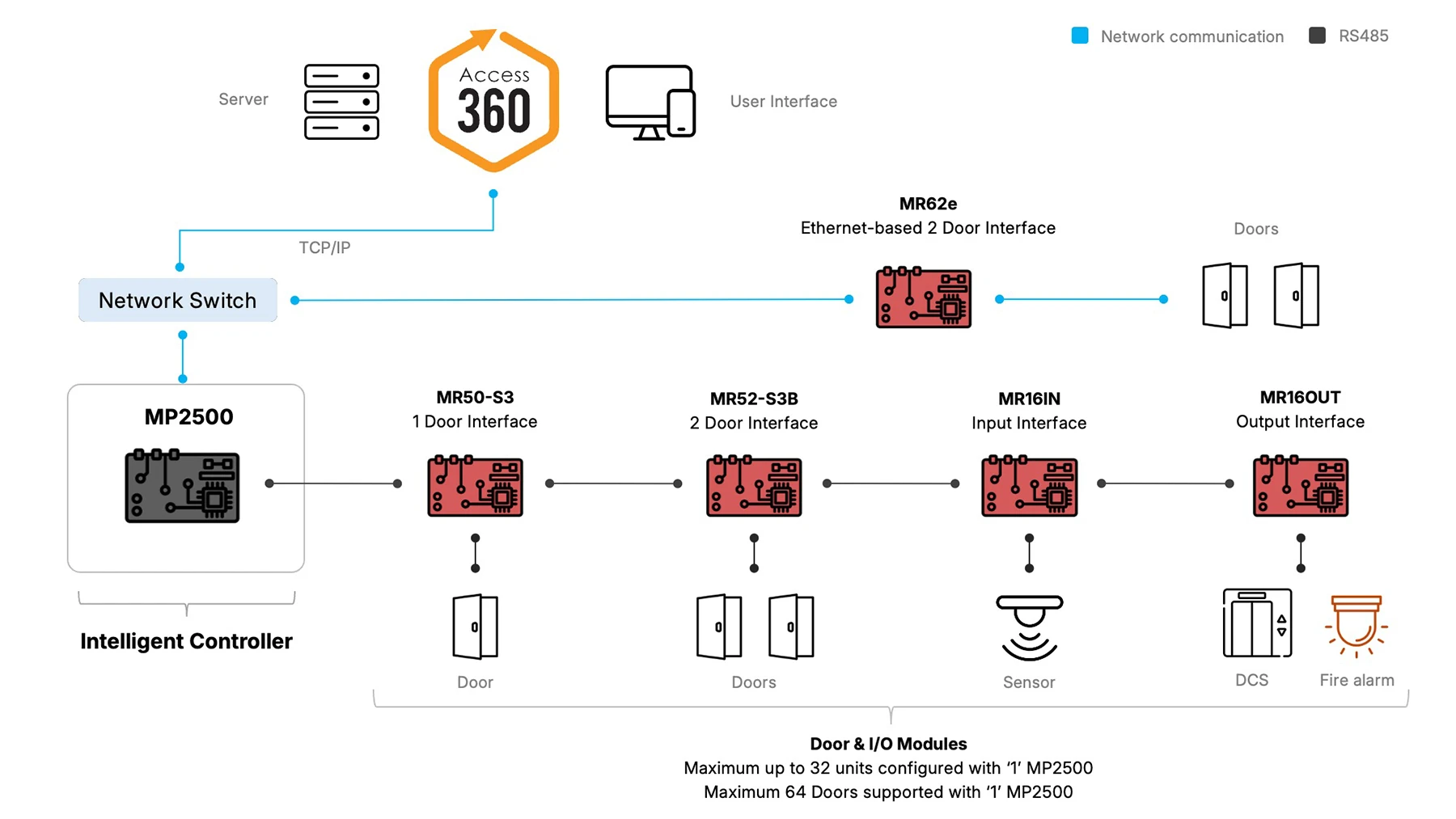

Mercury MP2500 controller architecture

Mercury MP2500 installation guide

Open infrastructure in Access Control brochure

Mercury MP2500 comparison chart

Frequently asked questions

What is Mercury MP2500?

The MP2500 is a networked controller in the enterprise Mercury access control system. It controls the downstream interface modules that are used for the readers and field devices. With the supported expansion modules, one controller can support up to 64 readers and openings.

What is the Mercury MP2500 wiring diagram?

The MP2500 wiring diagram is for the power, Ethernet, and RS-485 expansion modules. These diagrams illustrate how the controller communicates with the downstream interface boards and other field devices in the system.

Which driver supports MP2500 Mercury?

The Mercury Security MP2500 is compatible with Mercury hardware drivers used by various access control platforms. These drivers are used for communication between the controller and host system for configuration, monitoring, and reporting events.

What is the default password of the MP2500?

All Mercury controllers are shipped with a factory login password that is used during initial controller configuration. Installers will typically change passwords while installing the system to comply with site security requirements.

What is the default IP address of MP2500 Mercury?

The Intelligent Controller is configured during host system installation. The IP address is usually configured using the setup tools or access control software used on the system.

Which software supports MP2500 Mercury?

The Mercury MP2500 Controller is compatible with access control platforms that support Mercury Access Security Controllers. These access control platforms use Mercury drivers to configure and manage controllers, events, credentials, and more.
